Making sense of SAP finance - evolution of the data model

by Alexander Roan on Jun 3, 2025

Introduction

The main purpose of Enterprise Resource Planning (ERP) for the finance function is to collect information about business activities and prepare it for financial and management analysis.

At its core, this involves saving, manipulating, and retrieving data.

In this context, it's useful for both business and IT people to understand the SAP data model. This is particularly useful when discussing the limitations of systems and considering possible enhancements.

It also reduces the potential for misunderstandings. The interpretation of financial and management results requires a good understanding of the source data and the logic applied to apply any classifications or calculations.

In this article, I'll look at the evolution of the finance data model from SAP R/3 to SAP S/4HANA. The focus will be on several important tables.

SAP R/3 Architecture

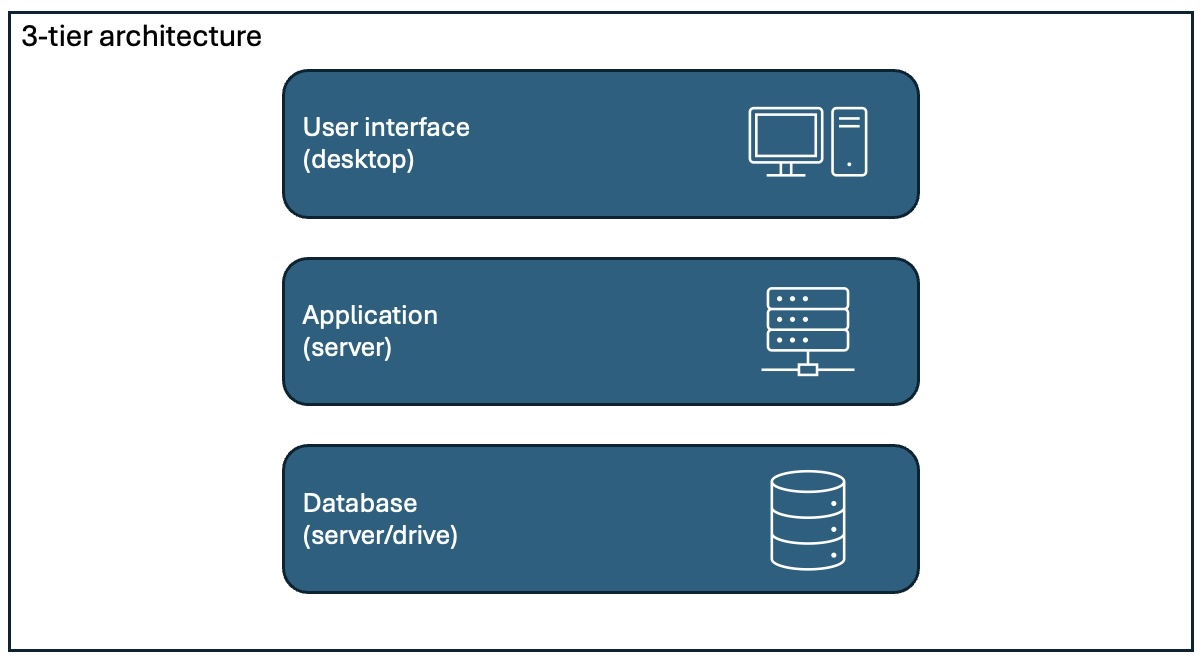

SAP R/3 is an application built on a '3-tier architecture'.

SAP finance 3-tier architecture

This architecture is commonly used for systems with multiple users and large data sets.

The user interface

The application

The database

The database layer for SAP R/3 utilises a relational database management system (RDBMS).

'Relational' is quite descriptive here. An RDBMS typically stores data separated across many small tables.

Consider the scope of data in an ERP system: purchase orders, sales orders, customers, vendors, production orders, invoices, payments, and more. This is a high volume of data, much of it connected according to the flow of business transactions. A purchase order leads to a goods receipt, an invoice, and a payment. All need to be stored in separate but connected tables.

RDBMS was the only feasible option for ERP systems at the time. Later in the article, we will see how SAP HANA has changed this.

SAP R/3 Modules

SAP R/3 has an internal structure. It's broken down into functionally oriented modules. In recent times, SAP has shifted away from talking about modules. However, if you look at the configuration in S/4HANA, it's still structured this way.

The classic list of modules includes:

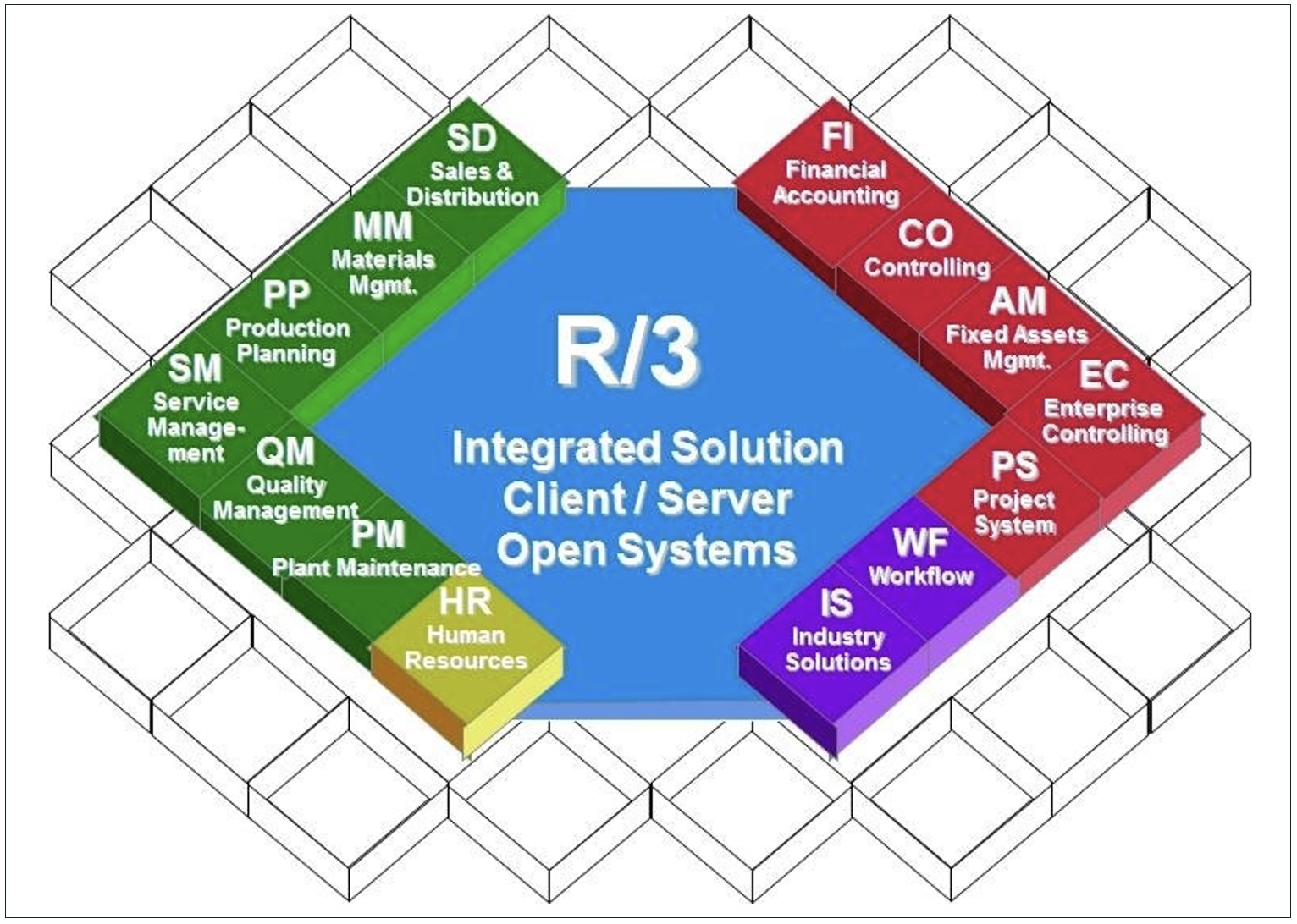

SAP’s classic illustration of the modules:

SAP finance 3-tier architecture

Each of these modules has its own set of tables and programs.

The modules that we are most interested in for finance and will cover in this article are:

Asset management (AM) is also part of finance. However, for brevity, I will skip discussing AM tables here. This is not a big omission, as the finance postings generated in AM end up in FI and CO tables.

Other modules, such as sales and distribution (SD) and materials management (MM), also generate finance postings. Think of these as interfaces to FI and CO.

Finance (FI and CO) tables

Let's clear up some potential naming confusion.

In business terms, 'finance' usually means both financial accounting and management accounting.

In SAP terms, it is slightly different:

When I use 'finance', I refer to the whole of finance from a business perspective. If I want to refer to a part of SAP, I will use either ‘FI’ or ‘financial accounting’.

It’s helpful to think of FI and CO tables in categories:

Category 1: configuration tables:

Category 2: master data tables:

Category 3: transaction tables:

Certain category 1 items, such as cost centers and profit centers, are ‘configured’ however, they lean towards category 2 master data. They are more ‘changeable’ than things like company code, but also need to be carefully managed to ensure reporting consistency and comparability over time.

A business activity

Systems make more sense when we view them from a business process perspective. We can look at the SAP finance tables through the lens of a finance activity, such as posting an invoice.

Below is a 'mock' invoice I put together for this discussion:

sample invoice

Invoice standards vary by geography but generally include items like those shown.

Typical invoice fields:

From business activity to accounting

Finance is unique in that we need to translate business activities into double-entry accounting entries.

The accounting equation is:

Asset = Liabilities + Equity

Every entry into accounting involves at least two 'line items' that balance to zero according to the above accounting equation.

For the above invoice. As a business activity, it states that

This is translated to an accounting entry as:

Or summarised as the accounting equation:

2,000 (tax recoverable) = 12,000 (liability) + (-10,000) (P&L / equity)

Which balances to zero.

I go into more detail on this in my article on the chart of accounts:

Chart of accounts - concept and design.

Finance document posting in SAP

The example invoice translates to one document with three line items.

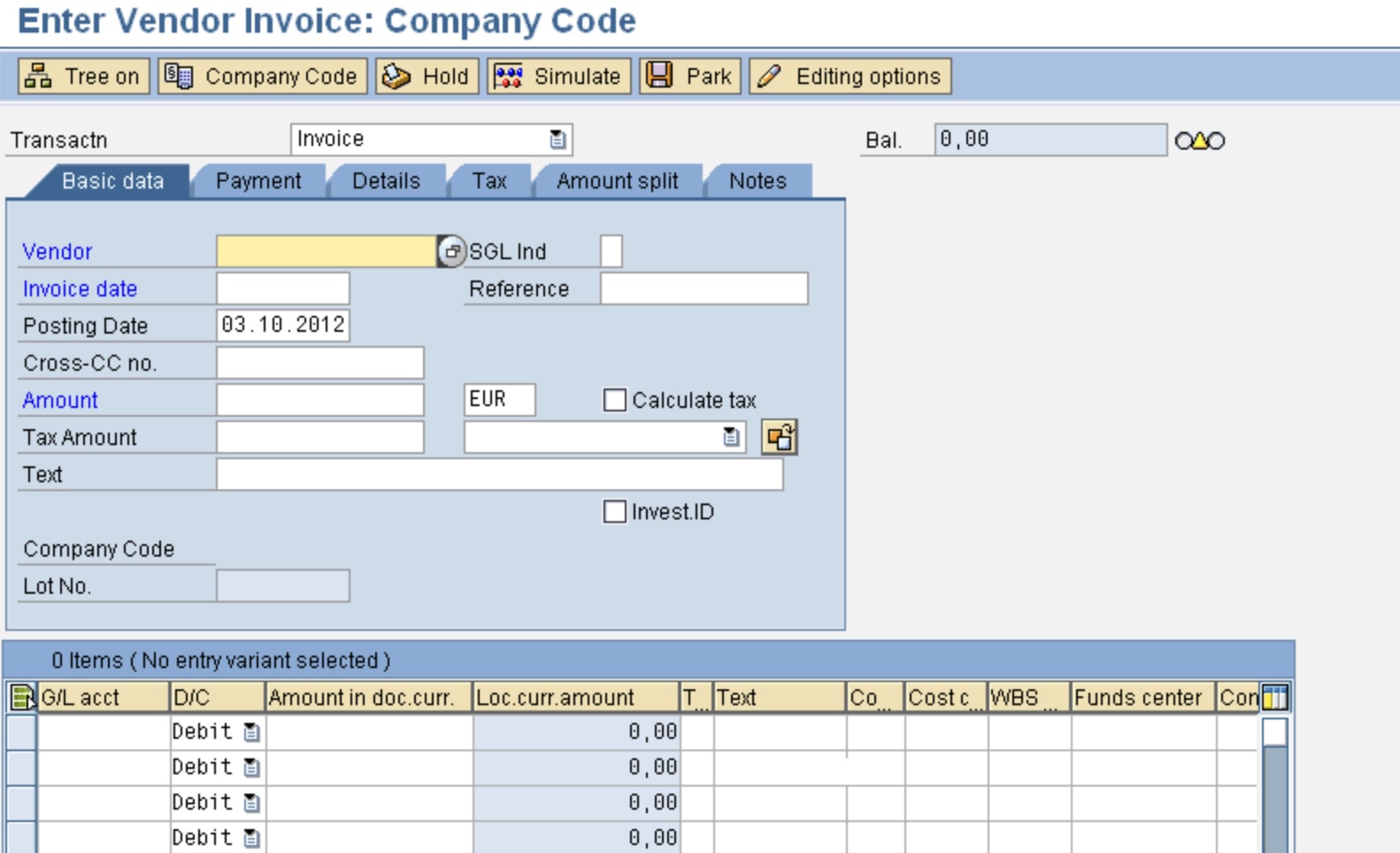

One of the classic transactions in SAP R/3 to enter an invoice is FB60. We use this transaction to 'post' the invoice:

FB60

A common structure for documents in business systems is to break the document down into a header section and a line items section.

In our invoicing scenario:

Invoice header:

Line items:

The FB60 transaction is visually split into two sections. The top half contains fields related to both the header and vendor line item, while the bottom half has a set of rows that are used to enter additional 'offsetting' line items.

The top half of the screen defaults to basic data, but has tabs to switch to views for payment data, tax data, etc.

The information entered in this transaction will be saved to several FI and CO tables. In this example, two or potentially three documents will be created depending on whether profit center accounting is active.

The data saved in tables relating to this transaction goes beyond what is seen on the invoice; it includes internal information and derived or calculated information. You could consider three types of data:

A: Internal information:

Information that is known to SAP and will be added to the tables by default.

B: Invoice information:

Relevant details from the invoice will be entered.

C: Derived and calculated information:

Some data will be either validated or calculated.

Finance document tables

To start, let's look at key accounting tables that will be referenced or updated with this transaction.

Category 1: Configuration data:

A sample of important tables for finance

Category 2: Master data:

Examples of this are general ledger accounts, vendors, customers, cost centers, and profit centers.

Some of the important tables for finance:

Category 3: Transactional data:

Accounting is structured around two main tables, BKPF for header information and BSEG for line item information. General ledger journals, accounts payable invoices, and accounts receivable invoices all go to these tables. Financial postings from materials management, asset management, etc., also go to these tables.

BSIS, BSAS, BSIK, and BSAK are not additional tables; they are secondary indexes on BSEG.

There is also the totals table GLT0, which includes transaction totals per account per period. This helps with reporting performance when only reporting on balances.

Accounting document - header (BKPF)

As we enter values in fields in FB60, SAP will validate them. Validations range from 'format' to 'value' checks. For example, a format check would apply to a date field, while a value check may apply to something like the vendor field.

Only once all fields are entered and validated can the document be 'posted'. At this point, SAP will assign a document number.

Let's look at a selection of key fields from the accounting header table (BKPF).

FB60

All of this information is relevant to the entire invoice (all line items). Note that this is not a complete list of fields, just a sample of fields of interest.

BKPF will also include the accounting document number, but only when posted.

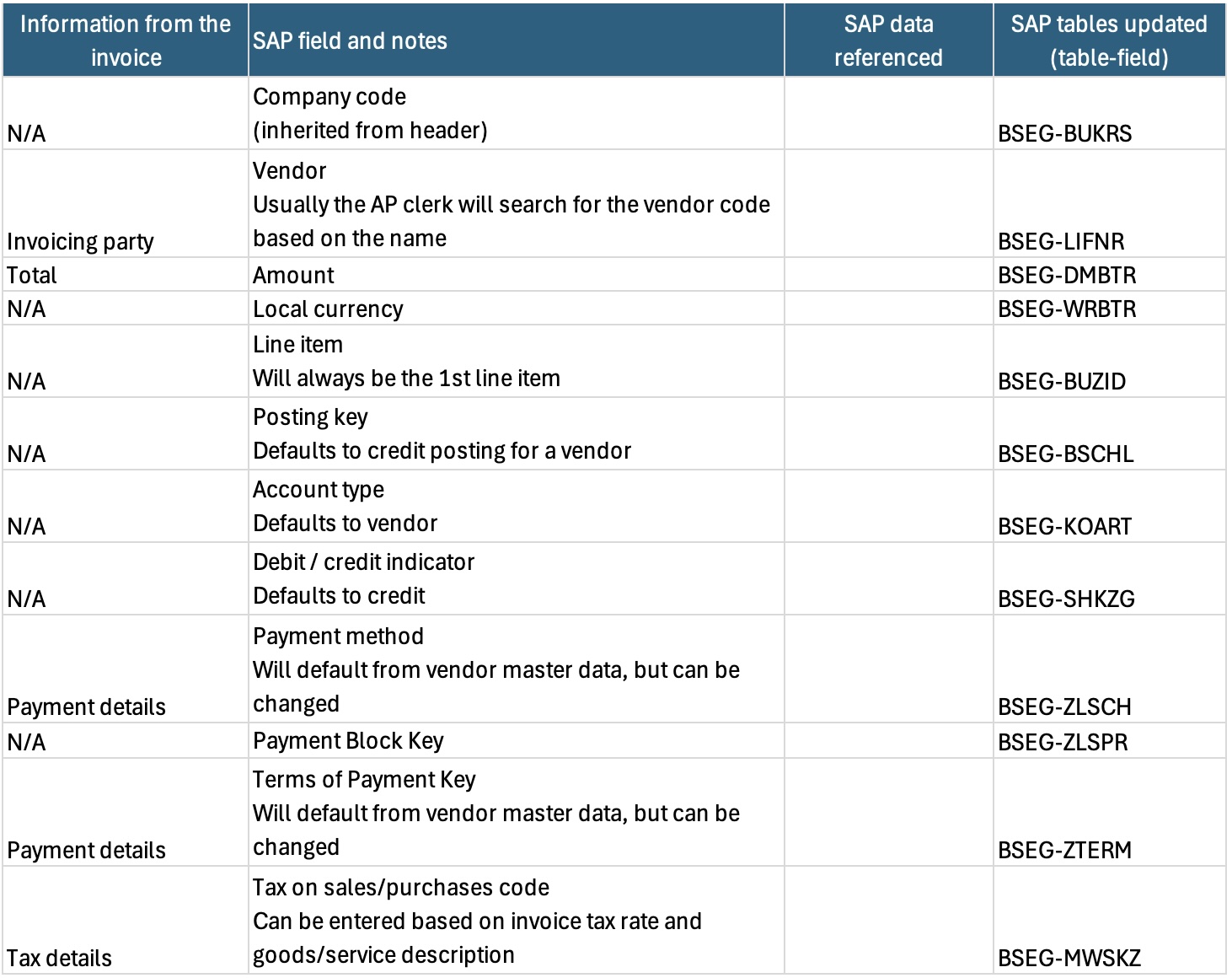

Accounting document - vendor line item (BSEG)

The first line item to enter is the vendor line item. As transaction FB60 is being used, SAP can default various values for this line item, such as account type, debit/credit, posting key, etc. It also knows that certain vendor-line related items, such as payment terms and payment method, are required.

FB60

When creating invoices, it's helpful to include clear information to ensure the AP clerk can easily post them. This may include adding things like:

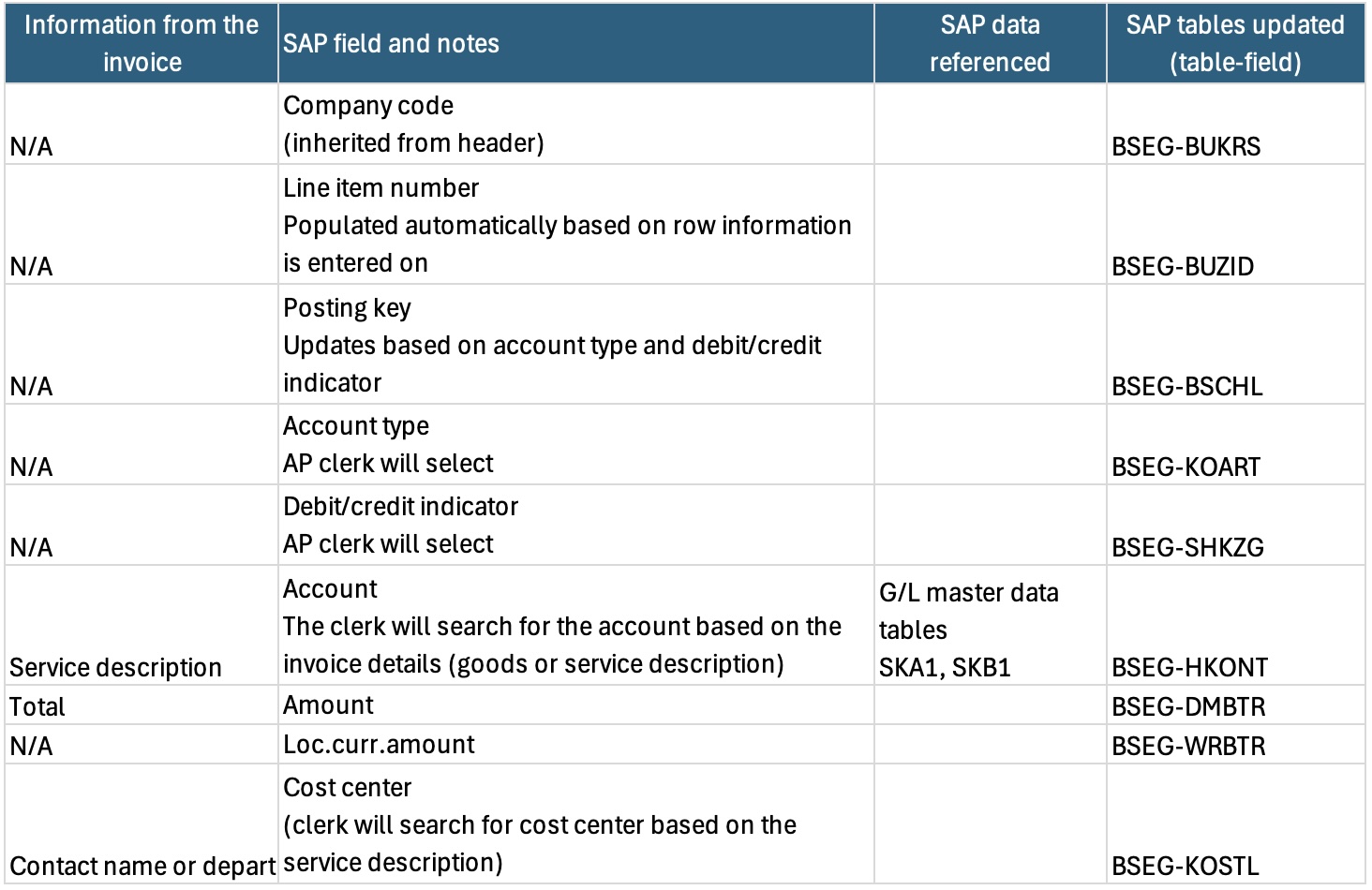

Accounting document - general ledger line item

After entering the header and vendor line item details, next comes the 'offsetting' line items to G/L accounts.

The example invoice is for consultancy services. In this case, it's an overhead cost that is charged to a single expense account.

In some cases, an invoice may total up various sub-services and may need to be split across multiple accounts.

The AP clerk will search for the right expense account based on the description of the goods or services on the invoice.

FB60

(This is just a subset of fields.)

In this line item, an entry of £10,000 is recorded on the consulting expense account.

But what if we want to analyse and report on the department that was the source of the cost? Was it £10,000 spent by marketing, or IT, or £5,000 each?

This is where Controlling (CO) and cost centres come in.

In the accounting posting to the financial account, we enter a cost centre in the field BSEG-KOSTL.

While accounts represent the nature of a transaction, a cost centre represents the source of the cost. This usually equates to a team or department within a function.

In order to enter a cost centre with an account, it must be activated as a primary cost element. This means the account can be used in CO.

When an account is activated as a cost element and a line item is entered to it with a cost center, this leads to the creation of a controlling document.

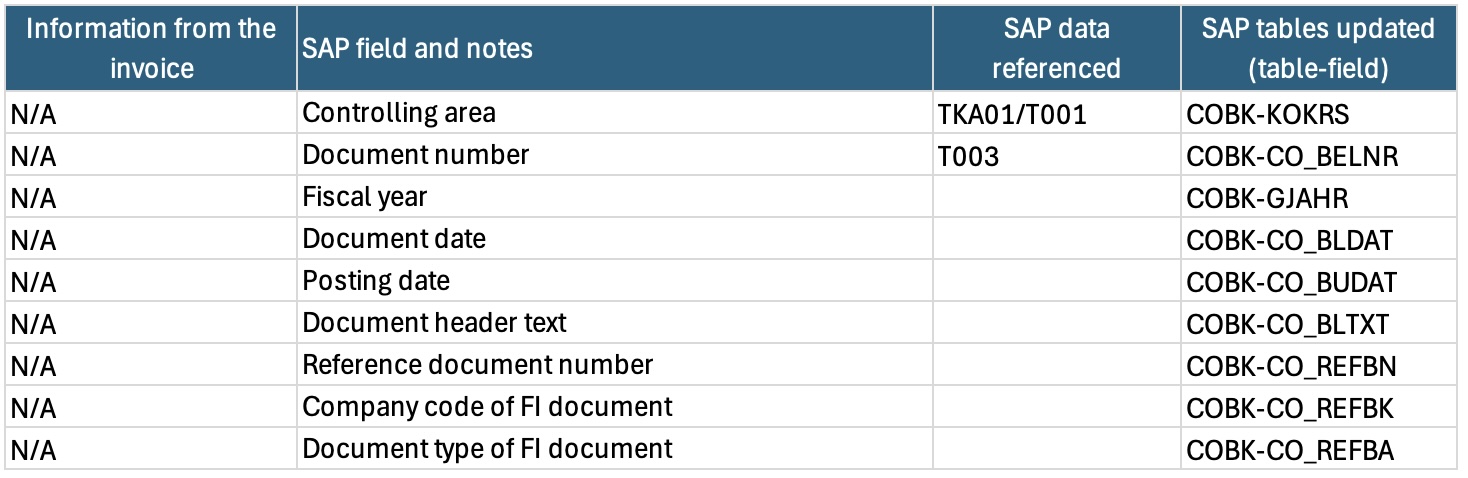

Controlling document - header (COBK)

As with accounting documents, controlling documents are split into header data and line item data.

FB60

Note that the controlling document header includes some references to the originating FI document.

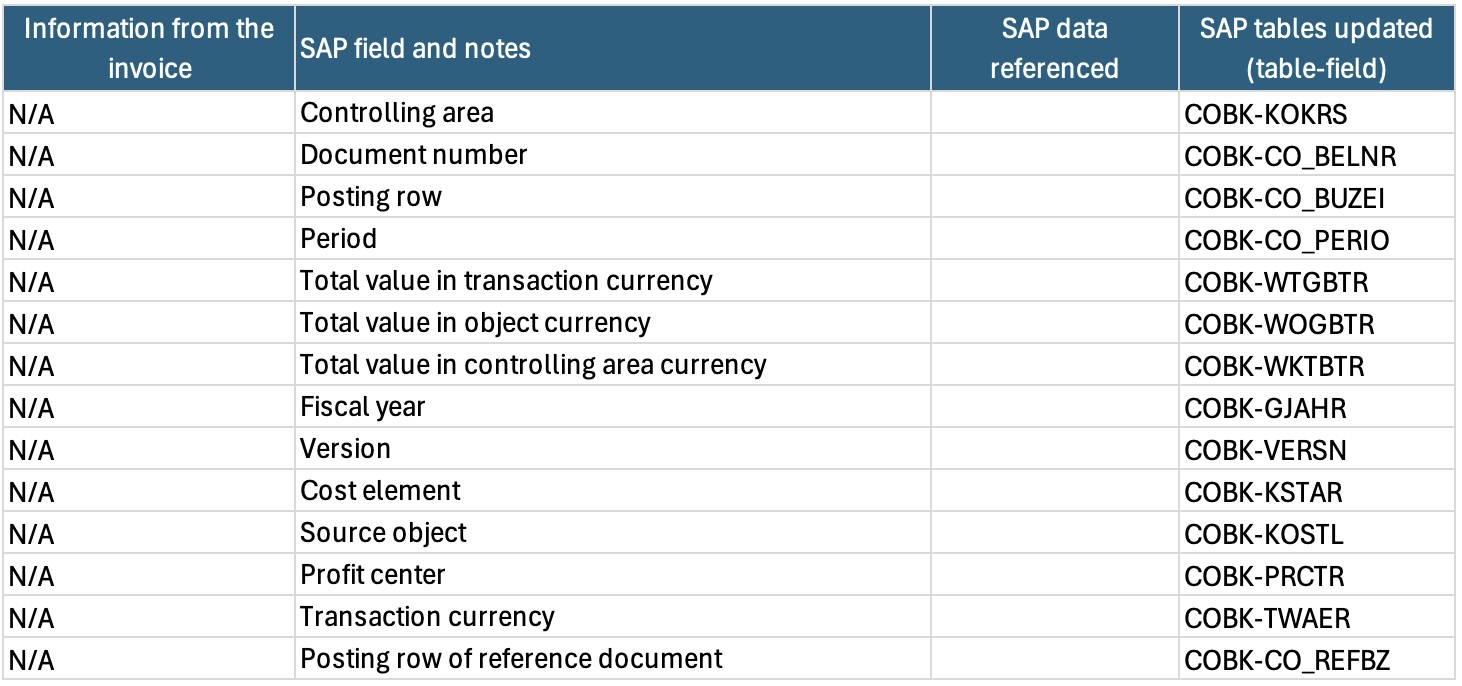

Controlling document - line item (COEP)

FB60

Note that rather than company code, the controlling tables contain a controlling area. Controlling is structured by controlling areas. If we want to compare management costs across different parts of our business, we should make sure they are in the same controlling areas.

How FI and CO work

In this example, our accounting document posts to an expense account with a cost centre, so two documents are created:

Why does this split exist? Why isn't everything all in one document?

The design of finance in R/3 was to have a split between financial accounting and management accounting. There are various ways to look at why it's done like this, two that stand out are:

Consider the example of a management allocation.

Assume our £10,000 consultancy service was delivered over 10 days, with 2 days spent with individual functions. From a financial accounting perspective, all we need to record is:

However, from a management perspective, we may want to record:

To keep financial accounting as efficient as possible, we can post £10,000 to a simple 'overheads' cost center. We can then distribute the costs in CO to the five functions without affecting the original posting.

This works because CO allows you to make postings within CO that don't affect FI. These are known as secondary postings.

When we posted to a cost centre with an account in FI, we had to activate that account as a primary cost element. To post to an account in CO only, we need to activate it as a secondary cost element.

Many of the financial reports in R/3 allow us to make selections on whether we want to see only primary postings or whether we want to see secondary postings. Using that logic, we could view the above example as either just £10,000 or we could view it split over the five areas.

This brings us to the topic of reconciliation ledger. Due to this ability to post to FI and CO separately, SAP R/3 has a process and set of tables to reconcile FI and CO. These will be noted later in the table diagrams.

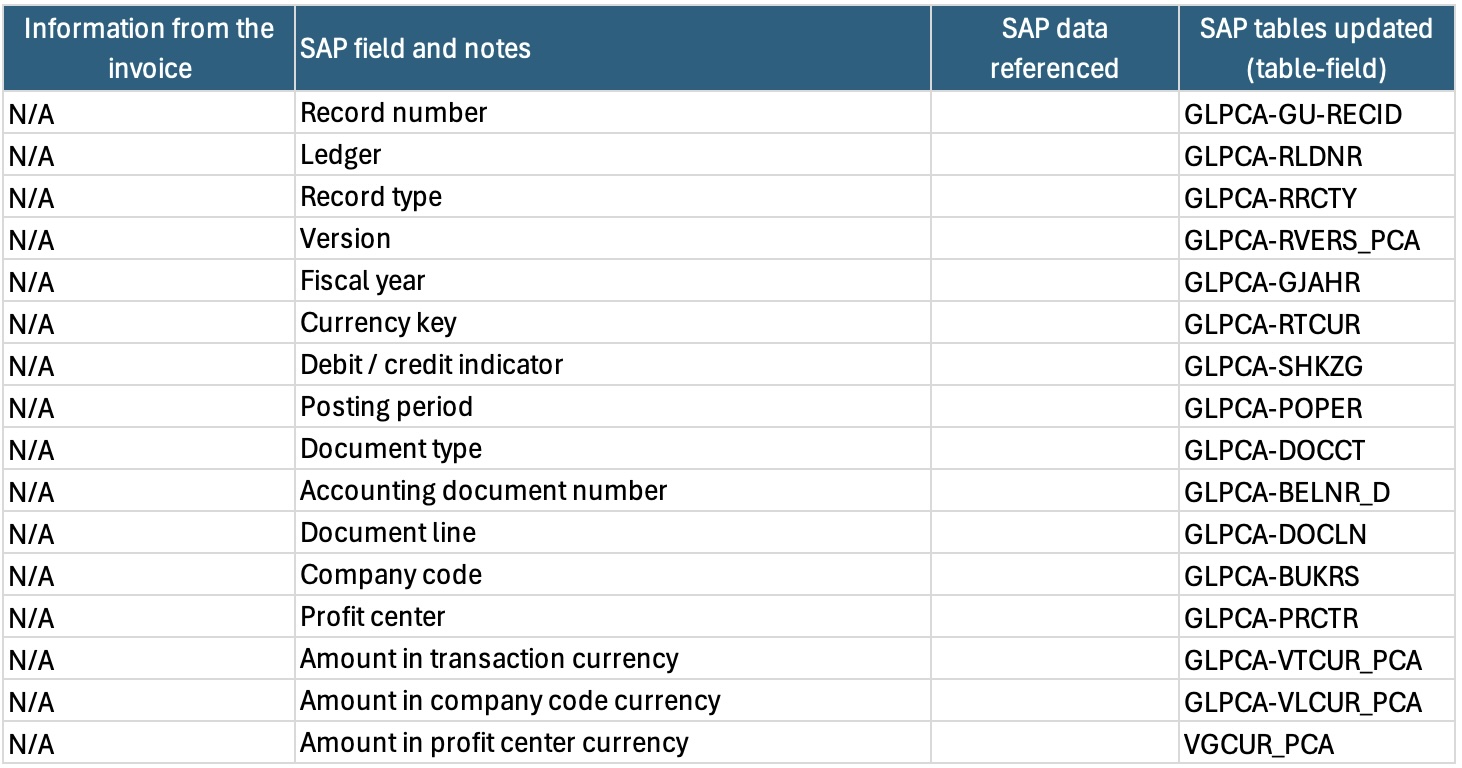

Enterprise controlling - profit center accounting document (GLPCA)

Time to introduce a potential third document!

R/3 has an option to activate profit center accounting.

Profit centers are used to collect revenue and costs. They are oriented towards calculating and reporting profit. Profit centers are generally created by area of profit responsibility. This will vary depending on the organisation, but typically it will often represent a set of products or a brand.

As profit centers collect costs, we add them to overhead cost centres to capture those costs. This means that with PCA active, if we post to a cost centre, we also post to a profit centre, which creates an additional document.

This time, there is no header and line items split, just one main table GLPCA

FB60

Document numbers

After all required information is entered in FB60 and the document is posted, the tables will all be updated with document numbers. For the accounting document, the number goes into the field BKPF-BELNR. This number links header and line item information on a one-to-many basis.

SAP identifies individual documents by the combination of:

Profit center and controlling documents are linked back to FI documents, and it's easy to navigate between them.

Summary of postings

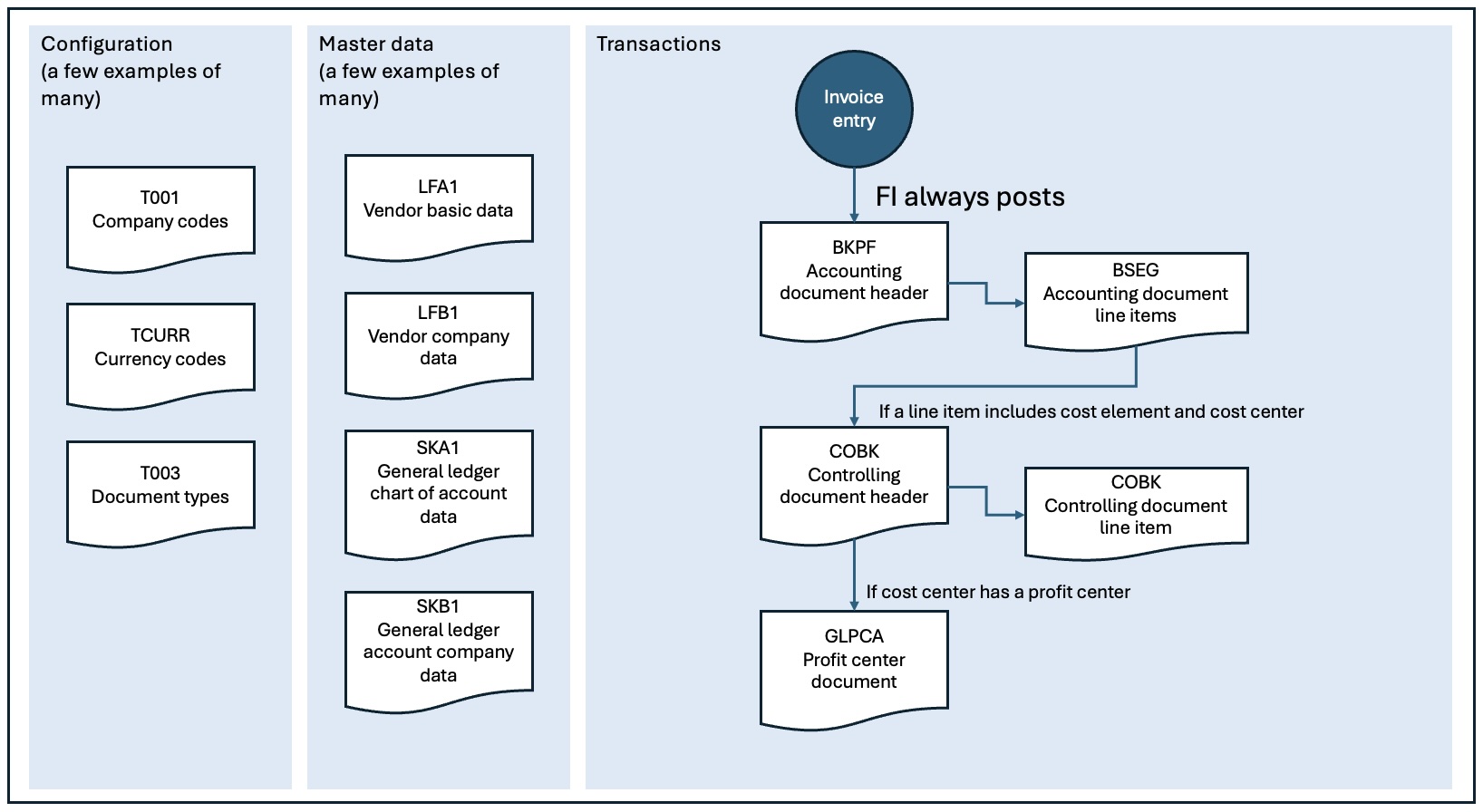

posting flow via tables

To summarise the process for posting an invoice and updating transactional tables:

  1. Accounting information is entered that updates BKPF and BSEG, there will be at least two line items
  2. If a cost center (or other cost object is used), a controlling document will also be created. This will update tables COBK and COEP
  3. If PCA is active, a profit center document will also be created. This will update table GLPCA
  4. During this process, configuration and master data tables will be referenced both to control how the transaction processes, to add default values, and to check and derive values.

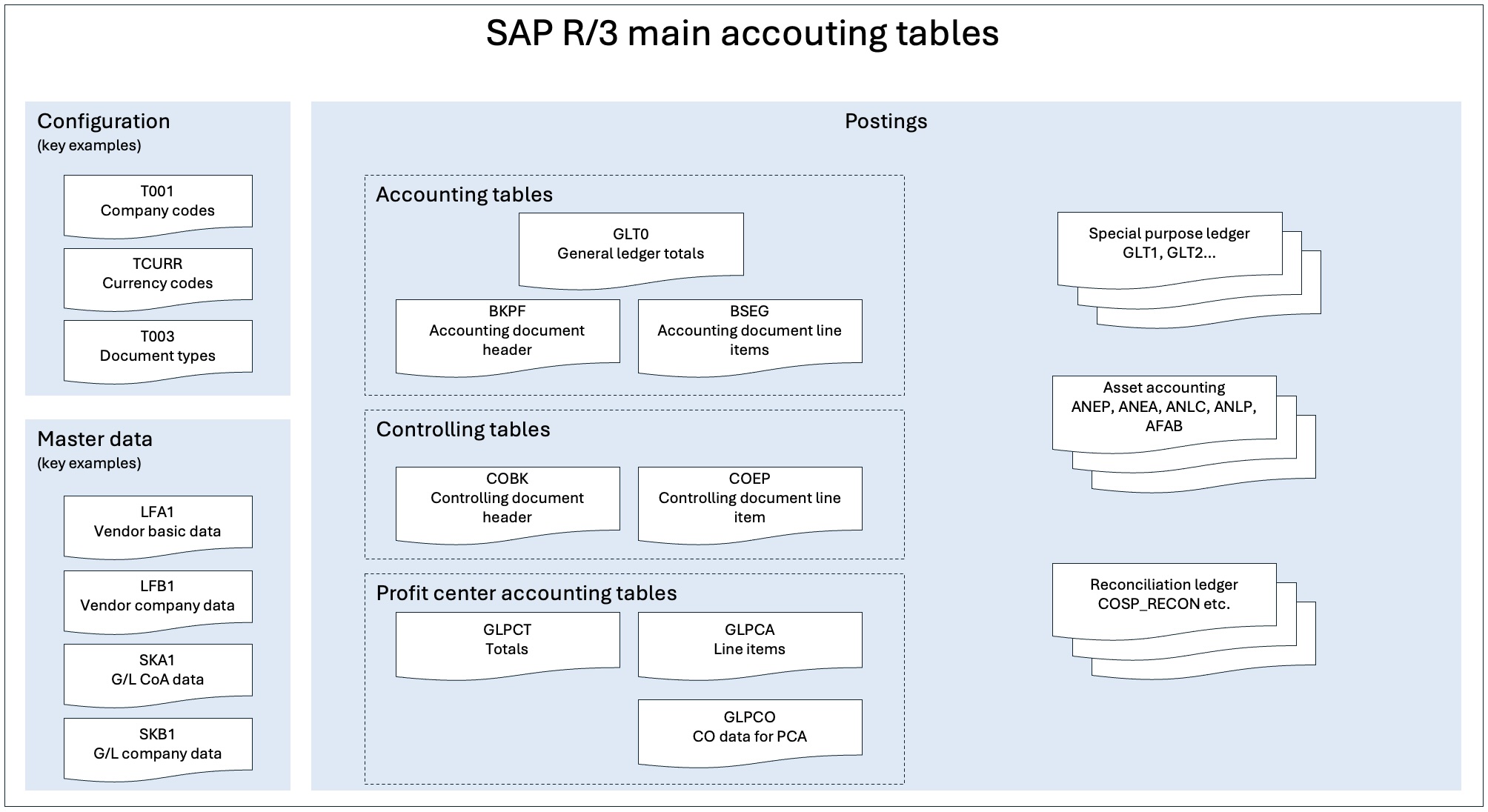

We can adjust this diagram to represent the table hierarchy better and add some of the additional finance tables for reference.

posting flow via tables

Note that the process is different for purchase order based invoices.

If, instead of an invoice, we looked at a payment posting, this would likely post a line item to a bank account and a line item to a vendor account. There is no expense account, and hence no cost centre, and no controlling document or profit center accounting document.

List of noteworthy finance tables

Here is a fuller list of tables for reference:

Noteworthy tables where configuration is stored

Finance - general ledger (FI-GL) tables:

Finance - accounts receivable (FI-AR) tables:

FInance - Accounts Payable (FI-AP) tables:

FInance - Asset Accounting (FI-AA)

Cost center accounting (CO)

Enterprise controlling - profit center accounting (EC-PCA)

Finance special ledger (FI-SL)

Finance reconciliation ledger (FI-RE)

Evolution from R/3 to ECC and NewGL

As R/3 evolved, SAP rebranded it to ECC (enterprise core component).

I discuss this in more detail in my post on HANA and S/4HANA.

SAP HANA and SAP S/4HANA - A Simple Guide

The new branding represented the strategy of a 'core ERP' connected to various specialist applications. Think of ECC feeding BW, business objects, BPC, etc.

As part of ECC, the NewGL (new general ledger) was introduced. Activation of NewGL was optional. This led to the terms NewGL and classic GL.

NewGL removed a lot of complexity from FI-CO, while also providing new solutions for some challenging requirements.

For context, let's summarise the biggest challenges with SAP R/3 before NewGL

NewGL provided improved solutions to these. The main functions of NewGL were:

As part of the NewGL solution, there are various changes to the tables. Let's visualise

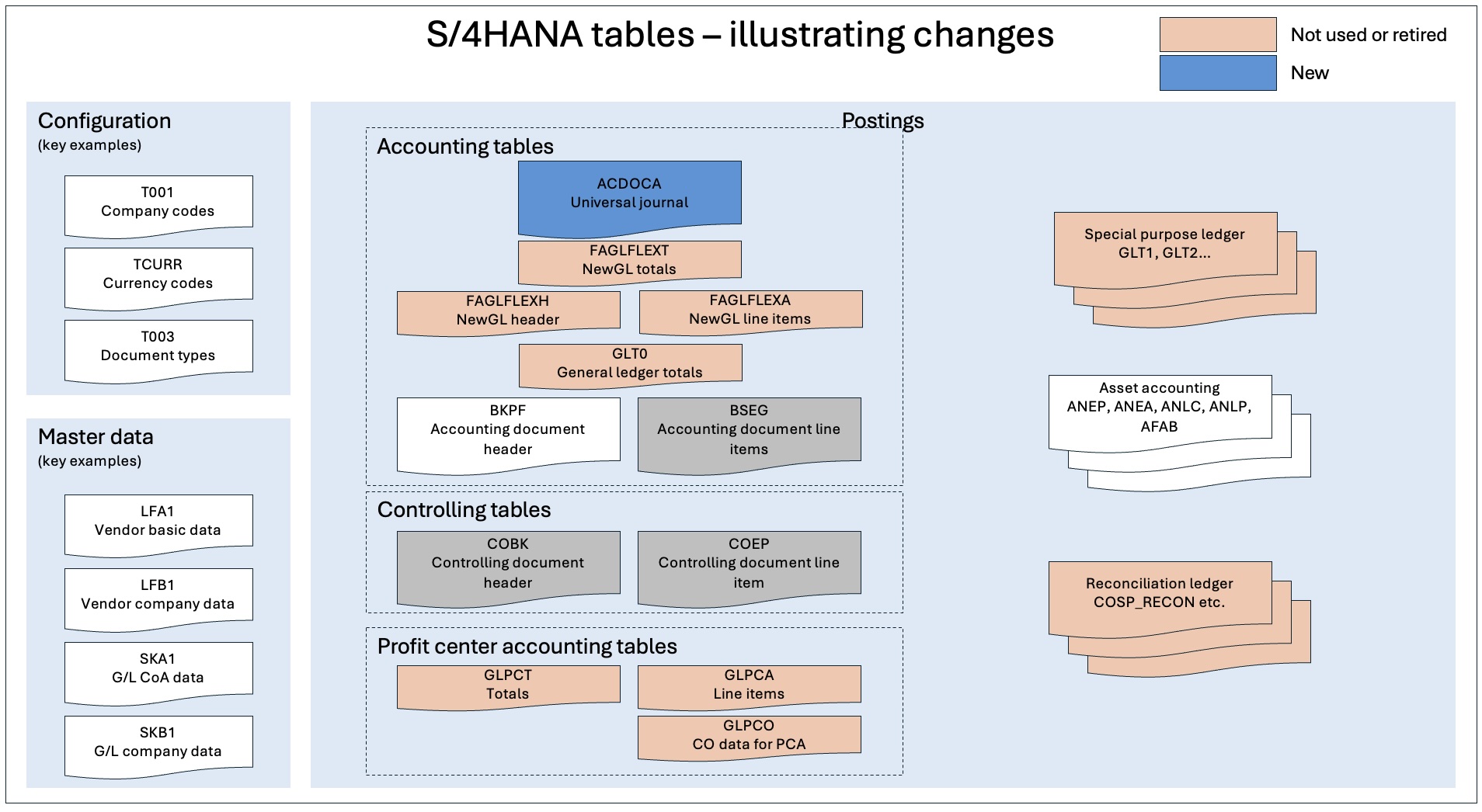

posting flow via tables

Retired / no longer used tables:

Enhanced tables:

New tables:

Extended field set

As we are discussing tables and fields, it's worthwhile to discuss the set of fields available in the accounting tables.

As discussed BKPF and BSEG contain the header and line item information for accounting documents. The line items in BSEG may represent vendor line items, customer line items, or G/L line items. The G/L line items may relate to balance sheet or profit and loss accounts. This could represent cash, fixed assets, revenue, costs, tax etc.

When we post an accounting document against a general ledger account, we capture a lot of information. As discussed earlier, this may include things like posting date, document type, G/L account, credit/debit, amount, etc.

This set of fields is sometimes referred to as the G/L code block.

When ERP was first introduced, the G/L code block was small. Only a limited number of values were captured with accounting postings.

Accounts should represent the nature of a financial item or activity. In the past if an organisation wanted to see more detail, they typically added additional accounts. This is known colloquially as a 'fat' G/L.

To illustrate:

In this scenario, three accounts were created. These represent a single nature 'consulting', split across three functions: IT, strategy, and logistics.

As we move from a 'fat' to a 'thin' G/L, we strip accounts back to 'nature' and use other dimensions to meet management reporting needs. In the above example, we would typically use a cost centre to represent a team, department, or function.

Over time, both financial and management reporting have added requirements for additional dimensions. A modern finance G/L code block includes fields such as: multiple currencies, transaction type, business area, cost centre, profit centre, material, plant, sales org, functional area, consolidation entity, etc. These and more are all in high demand for analytics programs.

In the past, I've worked on consulting engagements that involved redesign of the code block. It can be surprisingly complex when you consider the logic of how different values are sourced for different posting types.

To recap, NewGL was instrumental in bringing the following fields into the main ledger:

These fields can be combined with document splitting to allow for the creation of a full set of financial statements by those dimensions. This was very hard to achieve before NewGL.

I won't go into detail on document splitting here. But in simple terms, if you want to split on a field included in a GL line item entry, you will split all other lines on the same basis.

Let's illustrate

Basic posting to two profit centers without splitting:

Posting with document splitting on a profit center basis:

As you can see with splitting, we can now split financial information across all accounts by profit center.

Old accounting tables vs. new tables

Looking at the diagram, you may wonder why accounting data is duplicated across BKPF/BSEG and FAGLFLEXA / FAGLFLEXH.

The elephant in the room is that changing or removing BKPF and BSEG is nearly impossible.

Secondly, the tables are not identical; they do serve different purposes.

Role of BKPF/BSEG:

Role of FAGLFLEXA / FAGLFLEXH:

Think of BKPF / BSEG as being the source of accounting truth. Think of FAGLFLEXA / FAGLFLEXH as the source of either alternate ledger-based reporting or alternate management views.

As I write this, I do wish the NewGL tables were more concisely named!

Evolution with 'S/4HANA'

NewGL brought a significant change to finance. However, possibilities were still limited by the IT hardware and RDBMS database.

I have previously written a blog post about HANA and S/4HANA, which might be useful before continuing.

SAP HANA and S/4HANA - a simple guide

As a recap the HANA database allowed ERP to operate as both a transactional and analytical application, this was due to HANA's

ECC therefore, evolved into S/4HANA, an ERP running on the HANA database.

I'd like to be both honest and give credit to SAP. At its core, S/4HANA is still very much R/3. The financial transactions are similar. The processes you work through are similar. However, the core is greatly improved by the NewGL and HANA changes. I do feel that SAP sometimes tries to brand S/4HANA as something completely new. That's not right, it's an evolution of R/3.

The major benefit of S/4HANA is that the RDBMS constraints are gone. The design paradigm of having many tables: BKPF, BSEG, COBK, COEP, FAGLFLEXT, FAGLFLEXH, FAGLFLEXH, etc. is no longer necessary.

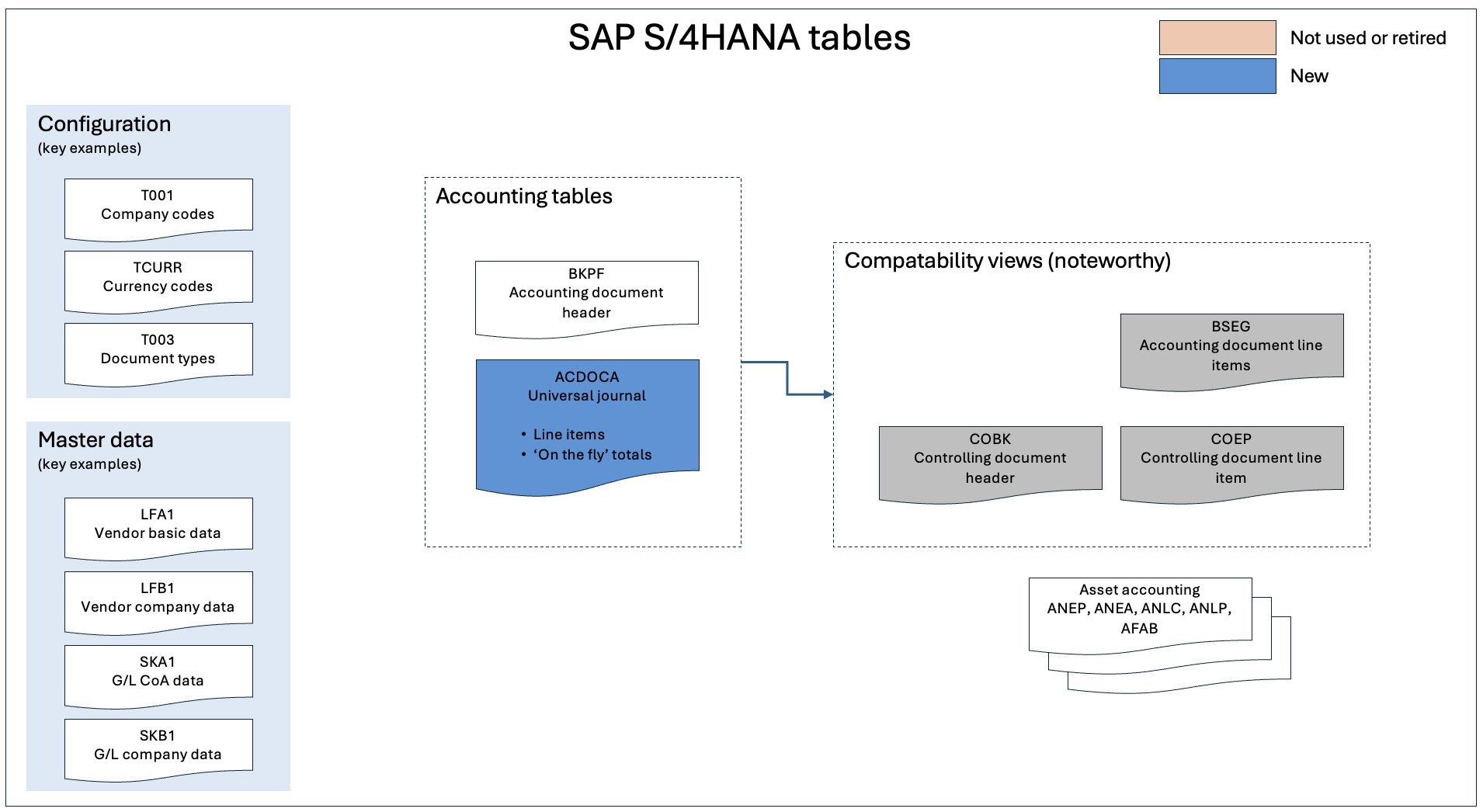

To take advantage of this, SAP created the 'Universal Journal' based on the new table ACDOCA. A lot of the complexity of FI-CO is replaced with a single actuals table.

Let's visualise the S/4HANA changes

posting flow via tables

Note that I have excluded planning tables for simplicity. In my experience, planning is not often done in S/4HANA directly.

This brings us to a simplified view for S/4HANA

posting flow via tables

As you might imagine, there are thousands of standard and customer programs that reference the old tables BSEG, GLT0, FAGFLEXA, etc. These remain in SAP, but not exactly as 'tables'. They exist as 'compatibility views' which allow old programs to access the data in the historical structure of those tables.

What about secondary cost element postings

If you were paying attention, you might ask about what happened to this separation between FI and CO. What if we want to make allocations in CO only for management purposes?

This is managed using statistical postings. An assessment can be done on a statistical basis. A flag is used to choose whether to view financial information with or without these kinds of allocations.

Core data services (CDS)

If you've read about SAP Fiori, Embedded Analytics, or SAP Analytics Cloud (SAC), you may have seen the term CDS view.

CDS views have become a very important concept within SAP architecture.

From tables to views

In R/3, we often developed custom reports. In these reports, we used ABAP (SAP's proprietary programming language) to look up data.

ABAP code for looking up data is quite similar to SQL. For example

SELECT BUKRS from BSEG (select company code from table BSEG)

Modern reporting and S/4HANA

With increasing focus on reporting and analytics, we have come along way from the occasional custom report. ERP now needs to provide a variety of data sets for different applications.

This is where core data services come in.

In IT, we call CDS views 'semantic layers'. At a basic level, it means that a CDS view specifies a set of data with information about that data and how it can be utilised.

Rather than having to code which tables to look up and how to join them, a developer can now refer to a CDS view.

One of the great things about CDS views is that if a standard one doesn't quite fit your need, you can just put a new view on top of it and make adjustments.

Which brings me to layers. CDS views work in layers. Often you have:

The layering of the views gets complicated. I was looking at a commitment report CDS view in SAP, and I think it had about 10 layers accessing various accounting and purchasing tables at different points.

However, this ability to build in layers does make things easier for developers, especially when it comes to re-usability.

In terms of application runtime, S/4HANA simply flattens all the CDS layers down into a single set of lookup statements from the database tables. There is no added effort from the system to work with multiple layers.

In terms of examples, some common CDS views are:

These start with 'I', indicating they should be used as a basis for other views.

As an example of a view ready to be used, we have, for example, 'C_GLLineItemRawData', which is a 'C' or consumption view that is designed to provide raw data for analytics. This is fed by I_GLAccountLineItemCube.

Accessing S/4HANA financial data

One of the practical points of understanding the financial data model in S/4HANA is preparing and accessing data for external usage:

Within S/4HANA, the aforementioned CDS views can be used to access ACDOCA. The current recommended integration service is SAP's OData service.

Alternatively, ABAP can still be used with Select statements to access ACDOCA.

And there are also standard data extractors for BW, Data Warehouse Cloud, and DataSphere.

Final words

Hopefully, this provides some useful context around tables. I realise we very lightly touched on some functional topics without detailed explanations. Let me know if you have questions.

Please also feel free to comment on topics of interest for my next post.

You may find other posts of interest on my website:

https://alexroan.com/filter/posts/

Finance systems-related posts include:

Share, comment/discuss

Share on LinkedIn, X, or Facebook.
